Air-Vent Valve

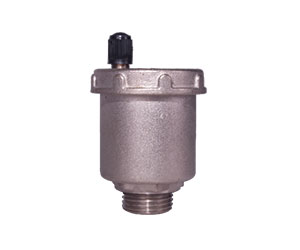

MV 112 AIR VENT VALVE
Salient Features :
- Test pressure: 10-15bar
- Maximum Working Temperature: 220°C

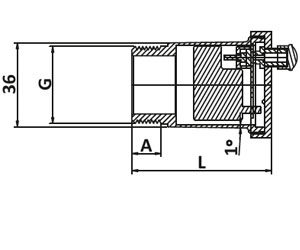

Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | G | L |
| 1/2″ | 15 | 10.0 | 1/2″ | 57.0 |
| 3/4″ | 20 | 10.5 | 3/4″ | 58.5 |
| 1″ | 25 | 12.5 | 1″ | 60.0 |
Size Range from : ½” (15 mm) to 1″ (25 mm)
