MV 104 MINI VALVE
Salient Features :
- Screwed M x F and F x F ends to BSP thread
- Knob operated
- Easy to Install
- Forged Brass Body
- Full bore
- Hard Chrome-plated Ball

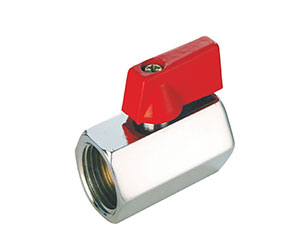

A. F/F THREADED
Size Range from: 1/4″ (8 mm) to ½” (15 mm)
Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | A/F | G | H | L |
| 1/4″ | 8 | 9.0 | 19.0 | 1/4″ | 28.0 | 37.0 |
| 3/8″ | 10 | 11.0 | 19.5 | 3/8″ | 29.0 | 41.0 |
| 1/2″ | 15 | 10.5 | 23.8 | 1/2″ | Ø30.0 | 43.0 |

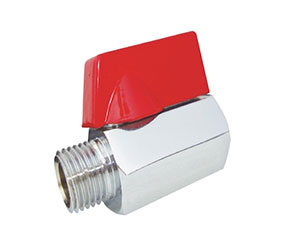

B. M/F THREADED
Size Range from: 1/4″ (8 mm) to ½” (15 mm)
Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | A/F | G | H | L |
| 1/4″ | 8 | 12.0 | 19.0 | 1/4″ | 28.0 | 43.5 |
| 3/8″ | 10 | 10.0 | 19.5 | 3/8″ | 28.5 | 43.0 |
| 1/2″ | 15 | 11.5 | 23.5 | 1/2″ | 31.0 | 43.5 |
