Nozzle Bib Cock

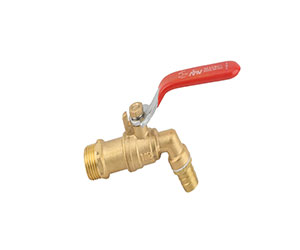

MV 100 BRASS BIB COCK (BRASS POLISH)
Salient Features :
- Screwed male end
- Three piece design
- Easy to Install
- Forged Brass Body
- BSP Thread

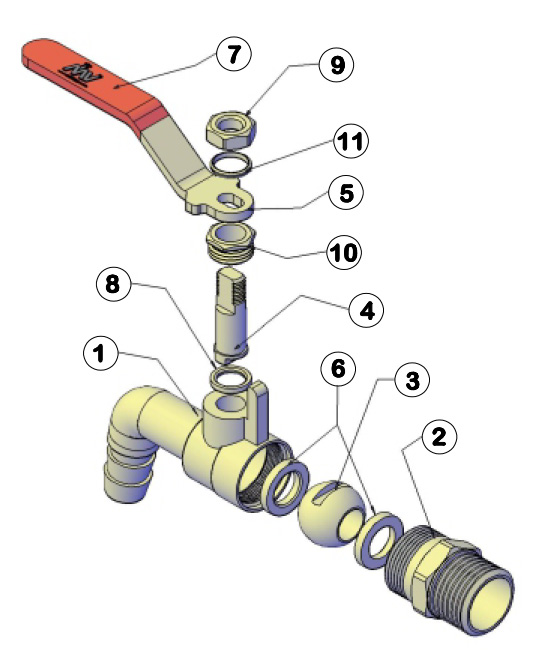

Specification :
| S.No. | Description | Material |
| 1 | Body | CW617N Brass |
| 2 | Cap | CW617N Brass |
| 3 | Ball | Chrome Plated Brass |
| 4 | Stem | Brass |
| 5 | Handle | MS – pickeled to prevent corrosion |
| 6 | Ball Seat | PTFE |
| 7 | Handle Sleeve | PVC |
| 8 | Stem Seat | PTFE |
| 9 | Nut | Brass |
| 10 | Counter Nut | Brass |
| 11 | Washer | SS |

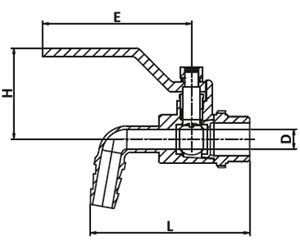

Dimensions:- (All Dimension are in mm)
| SIZE | DN | L | H | E | D |
| 1/2″ | 15 | 66 | 41.6 | 70 | Ø9 |
Size Range : 1/2″ (15 mm)

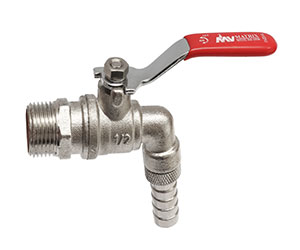

MV 103 BRASS BIB COCK (NICKEL POLISH)
Salient Features :
- Screwed male end
- Three piece design
- Easy to Install
- Forged Brass Body
- Quarter turn, BSP Thread

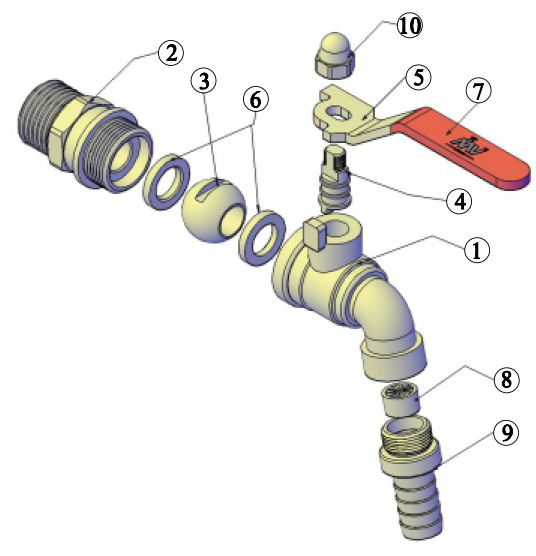

Specification :
| S.No. | Description | Material |
| 1 | Body | CW617N Brass |
| 2 | Cap | CW617N Brass |
| 3 | Ball | Chrome Plated Brass |
| 4 | Stem | Brass |
| 5 | Handle | MS – pickeled to prevent corrosion |
| 6 | Ball Seat | PTFE |
| 7 | Handle Sleeve | PVC |
| 8 | Mesh | PVC |
| 9 | Nozzle | Brass |
| 10 | Counter Nut | Brass |

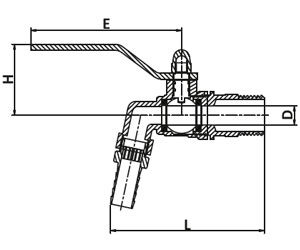

Dimensions:- (All Dimension are in mm)
| SIZE | DN | L | H | E | D |
| 1/2″ | 15 | 75.7 | 36.4 | 72.6 | Ø10 |
Size Range : ½” (15 mm)
