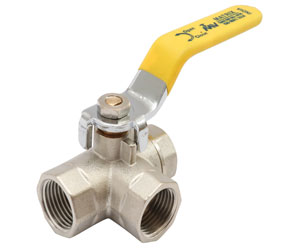

Three-way Ball Valve
MV 109 THREE-WAY BALL VALVE
Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | B | H | L | J | C |
| 1/2″ | 15 | 15.0 | 58.0 | 49.0 | 89.0 | Ø29.0 | 29.0 |
| 3/4″ | 20 | 18.0 | 68.5 | 52.0 | 89.0 | Ø36.0 | 36.0 |
| 1″ | 25 | 19.0 | 79.0 | 65.0 | 105.0 | Ø43.5 | 40.0 |
Size Range from : ½” (15 mm) to 1″ (25 mm)
